The CDM4620 is a DC/DC step-down uModuleregulator with standalone dual 13A or single 26Aoutput.Included in the module are the switchingcontrollers, power FETs, inductors and supportcomponents. A few filters, holding capacitors andresistors are required externally to form a completestep-down dual output DC/DC regulator.The input voltage range of the module is 4.5V to16V, and the output voltage can be set in the rangeof 0.6V to 5.5V with an external sampling resistor.The module supports external frequencysynchronization, multiphase operation, Burst Modeoperation and output voltage tracking for supply railsequencing.The module has an onboard temperature diode fordevice temperature monitoring. Fault protectionfeatures include overvoltage and overcurrentprotection.

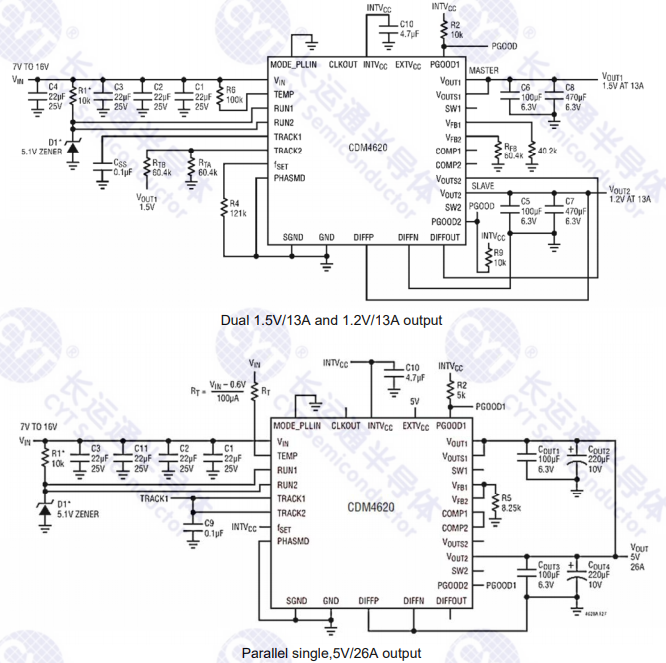

Complete Standalone Dual Output

Dual 13A or Single 26A Output

Wide Input Voltage Range: 4.5V to 16V

Output Voltage Range: 0.6V to 5.5V ±1.0% Feedback Voltage Reference Differential Remote Sense Amplifier Current Mode Control/Fast Transient Response

Adjustable Switching Frequency

Overcurrent Foldback Protection

Multiphase Current Sharing Parallel Application

Frequency Synchronization

Internal Temperature Sensing Diode Output

Selectable Burst Mode Operation

Soft-start/Voltage Tracking

Output Overvoltage Protection

Package Size:

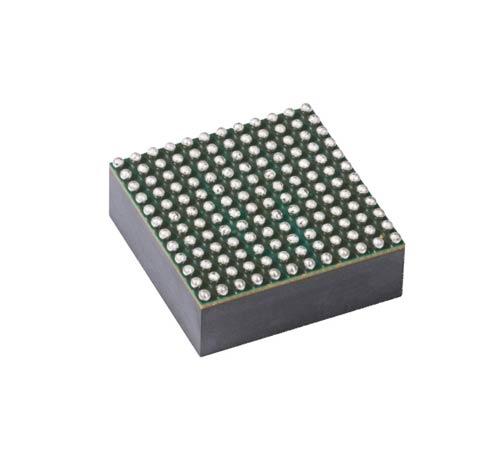

15mm × 15mm × 4.41mm LGA144

15mm × 15mm × 5.01mm BGA144

Industrial Equipment, Storage and ATCA Cards

Communication and Computer Technology Processor, ASIC and FPGA Kernel Power
